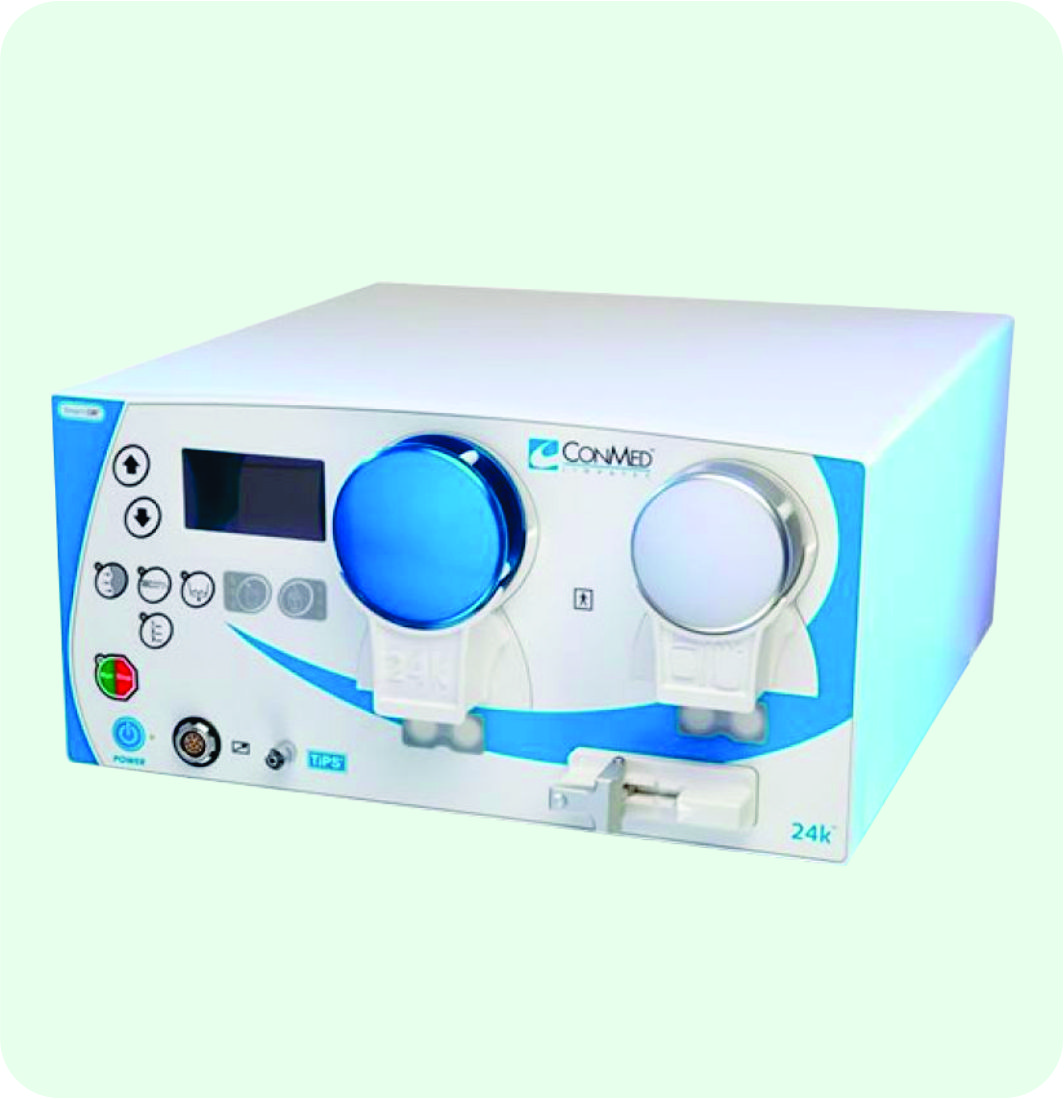

Pump arthroscopic double-flow

Irrigation/insufflation system, arthroscopic – A set of AC-powered products designed to provide controlled stretching and flushing (expansion under pressure and continuous flushing) of the tissue and space around the joint at the site where arthroscopy is performed (for example, at the knee or shoulder joint) . This is achieved by filling the cavity with sterile fluid, which is pumped into the wound by the system’s pumps and stretches the tissue around the site to improve visualization and increase the surgical field. The system may also use suction during the removal of surgically resected bone, cartilage, or other tissue/remnants from the surgical site.

Peculiarities:

Two-roller artropump with fluid supply and aspiration control – for use as part of an irrigation system during a number of endoscopic surgical operations
independent adjustment of pressure and fluid flow – to ensure high-quality cleaning of the surgical field, expansion of the joint cavity for the surgeon’s manipulations
at least 4 preset programs: knee, shoulder, small joint, hip – for convenience and efficiency in use
special mode for quick washing of the joint
independent sensor for the shaver – work with any shaver and accurately control the aspiration
mode for washing the cutter when it is clogged with tissues
mode for “draining” the joint at the end of the procedure
mode to stop bleeding and clear the field of vision
the possibility of using cassettes designed for use during the day – to save consumables
the possibility of using the pump for arthroscopic and laparoscopic operations – for the universalization of equipment and the possibility of using it in various areas of endosurgery
automatic detection of connected tubes – for convenience and efficiency in use
Dimensions – no more than 40 (W) x 20 (H) x 40 (D) cm
The volume of the given liquid – from 0,25 to 3 l/min. – to provide visualization in the area of ​​the surgical field and save the fluid used
easy change of tubes with one hand – for convenience and efficiency in use
Electronic display of the set wash liquid flow
Maintained pressure – in the range from 10 to 150 mmHg. – to provide visualization in the area of ​​the surgical field and ensure the safety of tissues
Ability to connect a remote control – for convenience and efficiency in use
